3-1825138-1

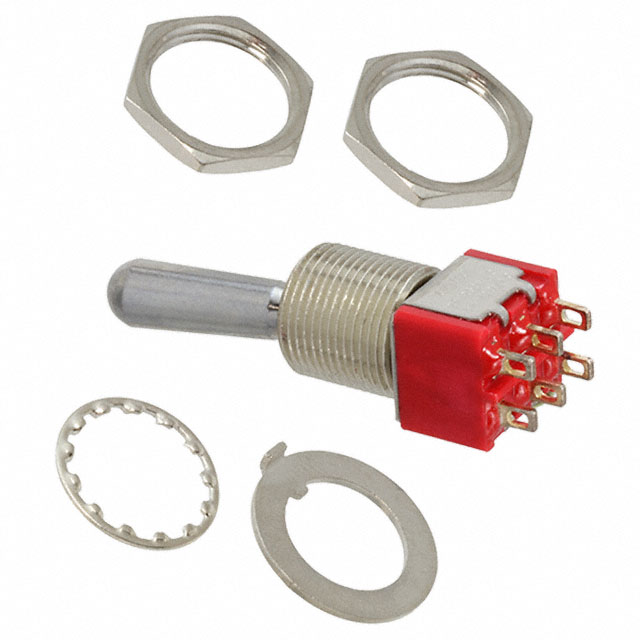

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

3-1825138-1

DigiKey Part Number
450-1904-ND
Manufacturer
TE Connectivity ALCOSWITCH Switches
Manufacturer Product Number
3-1825138-1
Description
SWITCH TOGGLE DPDT 5A 120V
Manufacturer Standard Lead Time
15 Weeks
Customer Reference
Detailed Description
Toggle Switch DPDT Panel Mount
Datasheet
 Datasheet
EDA/CAD Models
3-1825138-1 Models
Product Attributes
Type
Description
Select All
Category
Mfr
TE Connectivity ALCOSWITCH Switches
Series
Gemini A
Packaging
Bulk
Part Status
Active
Mounting Type
Panel Mount
Circuit
DPDT
Switch Function
On-On
Current Rating (Amps)
5A (AC/DC)
Voltage Rating - AC
120 V
Voltage Rating - DC
28 V
Actuator Type
Standard Round
Actuator Length
17.45mm
Illumination
Non-Illuminated
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Termination Style
Solder Lug
Panel Cutout Dimensions
Circular - 12.00mm Dia
Bushing Thread
15/32-32
Ingress Protection
-
Features
Epoxy Sealed Terminals
Operating Temperature
-30°C ~ 85°C
Actuator Material
Brass, Nickel Plated
Electrical Life
6,000 Cycles
Base Product Number
1825138
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

0 In Stock
Check Lead Time
Request Stock Notification
Quantity
All prices are in USD
Bulk
QuantityUnit PriceExt Price
1$7.86000$7.86
10$6.78300$67.83
25$6.39640$159.91
50$6.11820$305.91
100$5.85150$585.15
300$5.45163$1,635.49
500$5.27478$2,637.39
1,000$5.04350$5,043.50
Manufacturers Standard Package
